Guides

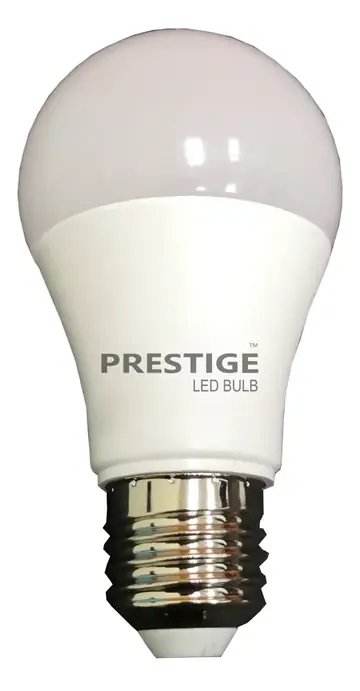

Match the cap, pick brightness in lumens, then choose the colour of light for the room.

• Check the cap first: E27 screw, B22 bayonet, E14 small screw or GU10 two-pin.
• Choose by lumens, not watts. About 800 lm replaces an old 60W bulb.
• 3000K is warm, 4000K is neutral, 6500K is daylight white.
• Only use a dimmable bulb on a dimmer switch.

Read the full guide2 min read

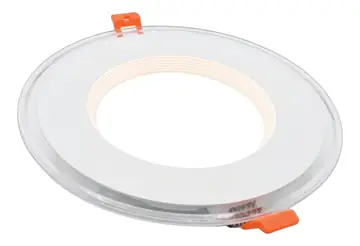

Measure the ceiling hole, decide between wide and focused light, and pick the colour for each room.

• Measure the cut-out (the hole in the ceiling) before you buy a replacement.
• Downlights spread light; eyeball and track spotlights aim it at walls, shelves and displays.
• 3-colour (3CCT) models let you choose 3000K, 4000K or 6500K after installation.
• Bathrooms and covered porches need a moisture-rated (IP44 or higher) fitting.

Read the full guide2 min read

T8 or T5, tube or complete batten, and what to ask before changing an office or shop over to LED.

• T8 tubes are 26 mm across; T5 tubes are 16 mm. They are not interchangeable.
• Length matters: 2 ft (about 600 mm) and 4 ft (about 1,200 mm) are the common sizes.
• Some LED tubes need the old ballast or starter removed. Have an electrician rewire the fitting.
• A complete LED batten or panel is often simpler than converting an old fitting.

Read the full guide2 min read

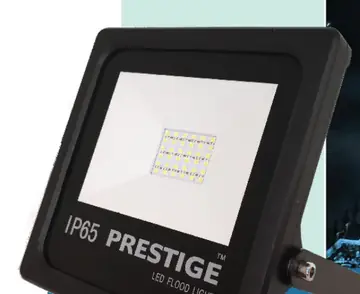

Size the light by lumens and mounting height, check the IP rating, and decide on the beam.

• Floodlights light outdoor areas from a wall or pole; high bay lights hang from tall ceilings.
• Compare lumens, not watts. Datasheets list the lumen output per model.
• Outdoors, look for IP65 or IP66.
• Mounting height and spacing decide how many lights you need. Send us the area and height for a suggestion.

Read the full guide2 min read

Look past the headline wattage: the panel, the battery and the lumen figure decide how a solar light performs.

• The big wattage in a solar light's name is not the same as the light output. Compare lumens and the battery.
• A larger panel and battery give longer, brighter nights.
• Mount the panel where it gets direct sun for most of the day.
• Outdoors, look for IP65 or higher.

Read the full guide2 min read

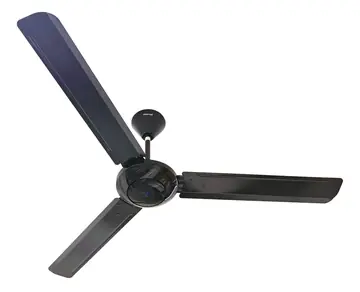

Pick the blade size for the room, check the ceiling height, and choose between AC and DC motors.

• Bigger rooms need bigger blades: roughly 42 to 48 inch for bedrooms, 56 to 60 inch for living rooms.
• Keep the blades at least about 2.1 m (7 ft) above the floor.
• DC motor fans use less power and usually come with a remote; AC fans often use a wall regulator.
• Fans with lights need a suitable switch and wiring at the ceiling point.

Read the full guide2 min read

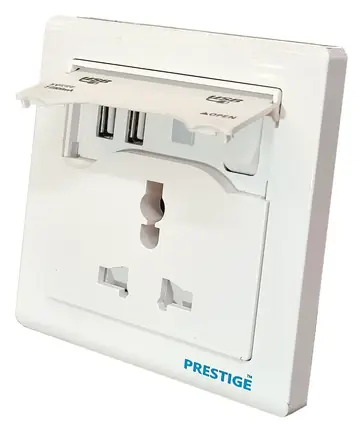

Malaysia uses the 13A three-pin plug. Choose by gang count, finish and series, and buy approved products.

• Malaysia uses the 13A square three-pin plug and socket (BS 1363 type).
• “Gang” is the number of switches on one plate; “way” means a switch that works with another for two-point control.
• Keep one series and colour per room so plates match.
• Look for approval marks such as SIRIM and the Energy Commission (ST) label on wiring accessories.

Read the full guide2 min read

Breakers protect cables from overload; RCCBs protect people from earth leakage. Here is how to tell them apart.

• An MCB trips on overload and short circuit. It protects the cable.
• An RCCB trips when current leaks to earth. It protects people from electric shock.
• An RCBO combines both in one module for a single circuit.
• Ratings: amps (e.g. 6A, 16A, 32A), poles (1P, 2P, 4P) and, for RCCBs, sensitivity (e.g. 30 mA, 100 mA).

Read the full guide2 min read
