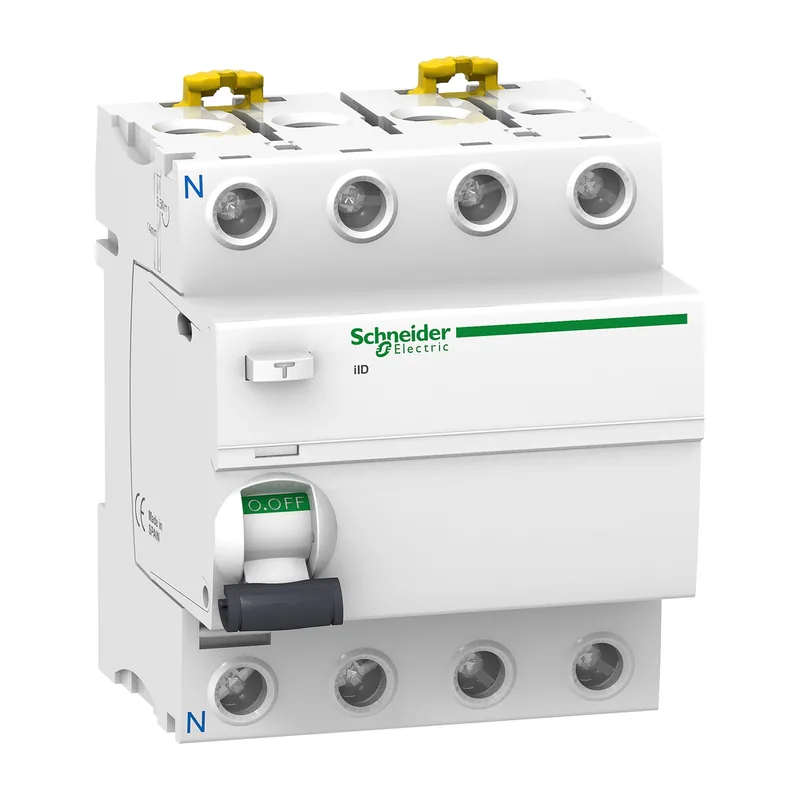

Acti9 iID Residual Current Circuit Breaker (RCCB) 4P, 25 to 100 A

The Schneider Electric Acti9 iID Residual Current Circuit Breaker (RCCB) 4P, 25 to 100 A is part of our RCCB (residual current circuit breakers) range. Models: A9R51425, A9R71425, A9R74425. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 400...415 V AC 50/60 Hz
Mounting: Clip-on, 35 mm DIN rail
Rated frequency: 50/60 Hz
Series: Acti9 iID

Features

Type AC, A and selective (-SI) variants

Prices change with stock and quantity, so we quote on request.

Models in this range 63

Model	Poles	Rating	Leakage sensitivity	Type	WhatsApp for a quote
A9R51425	4P	25 A	30 mA	A type	Ask A9R51425
A9R71425	4P	25 A	30 mA	AC type	Ask A9R71425
A9R74425	4P	25 A	300 mA	AC type	Ask A9R74425
A9R91425	4P	25 A	30 mA	A-SI type	Ask A9R91425
A9Z11425	4P	25 A	30 mA	AC type	Ask A9Z11425
A9Z61425	4P	25 A	30 mA	B-SI type	Ask A9Z61425
A9Z64425	4P	25 A	300 mA	B-SI type	Ask A9Z64425
A9R12440	4P	40 A	100 mA	AC type	Ask A9R12440
A9R15440	4P	40 A	300 mA	AC type	Ask A9R15440
A9R22440	4P	40 A	100 mA	A type	Ask A9R22440
A9R24440	4P	40 A	300 mA	A type	Ask A9R24440
A9R25440	4P	40 A	300 mA	A type	Ask A9R25440
A9R35440	4P	40 A	300 mA	A-SI type	Ask A9R35440
A9R51440	4P	40 A	30 mA	A type	Ask A9R51440
A9R71440	4P	40 A	30 mA	AC type	Ask A9R71440
A9R74440	4P	40 A	300 mA	AC type	Ask A9R74440
A9R91440	4P	40 A	30 mA	A-SI type	Ask A9R91440
A9Z51440	4P	40 A	30 mA	-	Ask A9Z51440
A9Z61440	4P	40 A	30 mA	B-SI type	Ask A9Z61440
A9Z64440	4P	40 A	300 mA	B-SI type	Ask A9Z64440
A9Z65440	4P	40 A	300 mA	B-SI type	Ask A9Z65440
A9Z66440	4P	40 A	500 mA	B-SI type	Ask A9Z66440
A9R12463	4P	63 A	100 mA	AC type	Ask A9R12463
A9R15463	4P	63 A	300 mA	AC type	Ask A9R15463
A9R17463	4P	63 A	500 mA	AC type	Ask A9R17463
A9R22463	4P	63 A	100 mA	A type	Ask A9R22463
A9R24463	4P	63 A	300 mA	A type	Ask A9R24463
A9R25463	4P	63 A	300 mA	A type	Ask A9R25463
A9R34463	4P	63 A	300 mA	A type	Ask A9R34463
A9R35463	4P	63 A	300 mA	A type	Ask A9R35463
A9R37463	4P	63 A	500 mA	A-SI type	Ask A9R37463
A9R51463	4P	63 A	30 mA	A type	Ask A9R51463
A9R71463	4P	63 A	30 mA	AC type	Ask A9R71463
A9R74463	4P	63 A	300 mA	AC type	Ask A9R74463
A9R91463	4P	63 A	30 mA	A-SI type	Ask A9R91463
A9Z51463	4P	63 A	30 mA	-	Ask A9Z51463
A9Z61463	4P	63 A	30 mA	B-SI type	Ask A9Z61463
A9Z64463	4P	63 A	300 mA	B-SI type	Ask A9Z64463
A9Z65463	4P	63 A	300 mA	B-SI type	Ask A9Z65463
A9Z66463	4P	63 A	500 mA	B-SI type	Ask A9Z66463
A9R11480	4P	80 A	30 mA	AC type	Ask A9R11480
A9R12480	4P	80 A	100 mA	AC type	Ask A9R12480
A9R14480	4P	80 A	300 mA	AC type	Ask A9R14480
A9R15480	4P	80 A	300 mA	AC type	Ask A9R15480
A9R16480	4P	80 A	500 mA	AC type	Ask A9R16480
A9R21480	4P	80 A	30 mA	A type	Ask A9R21480
A9R24480	4P	80 A	300 mA	A type	Ask A9R24480
A9Z61480	4P	80 A	30 mA	B-SI type	Ask A9Z61480
A9Z64480	4P	80 A	300 mA	B-SI type	Ask A9Z64480
A9Z65480	4P	80 A	300 mA	B-SI type	Ask A9Z65480
A9Z66480	4P	80 A	500 mA	B-SI type	Ask A9Z66480
A9R05491	4P	100 A	300 mA	A type	Ask A9R05491
A9R11491	4P	100 A	30 mA	AC type	Ask A9R11491
A9R12491	4P	100 A	100 mA	AC type	Ask A9R12491
A9R14491	4P	100 A	300 mA	AC type	Ask A9R14491
A9R15491	4P	100 A	300 mA	AC type	Ask A9R15491
A9R21491	4P	100 A	30 mA	A type	Ask A9R21491
A9R24491	4P	100 A	300 mA	A type	Ask A9R24491
A9R25491	4P	100 A	300 mA	A type	Ask A9R25491
A9R26491	4P	100 A	500 mA	A type	Ask A9R26491
A9R31491	4P	100 A	30 mA	A type	Ask A9R31491
A9R34491	4P	100 A	300 mA	A-SI type	Ask A9R34491
A9R35491	4P	100 A	300 mA	A-SI type	Ask A9R35491

Read from the maker's datasheet. Check the datasheet for the full specification.

Goes with

Parts and accessories that fit this product.

Schneider Electric

Easy9 Miniature Circuit Breaker (MCB), 1P to 4P, 6 to 63 A

EZ9F34106 · EZ9F34110

Schneider Electric

Acti9 iC60N Miniature Circuit Breaker (MCB) 1P, 0.5 to 63 A

A9F74170 · A9F73101

Schneider Electric

Acti9 iC60N Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A

A9F74270 · A9F73201

Schneider Electric

Acti9 iC60N Miniature Circuit Breaker (MCB) 3P, 0.5 to 63 A

A9F74370 · A9F74301

Questions about this product

Which models are in the Schneider Electric Acti9 iID Residual Current Circuit Breaker (RCCB) 4P, 25 to 100 A range?

The datasheet lists A9R51425, A9R71425, A9R74425, A9R91425, A9Z11425, A9Z61425, A9Z64425, A9R12440, A9R15440, A9R22440, A9R24440, A9R25440. Quote the model when you ask for a price.

Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.
