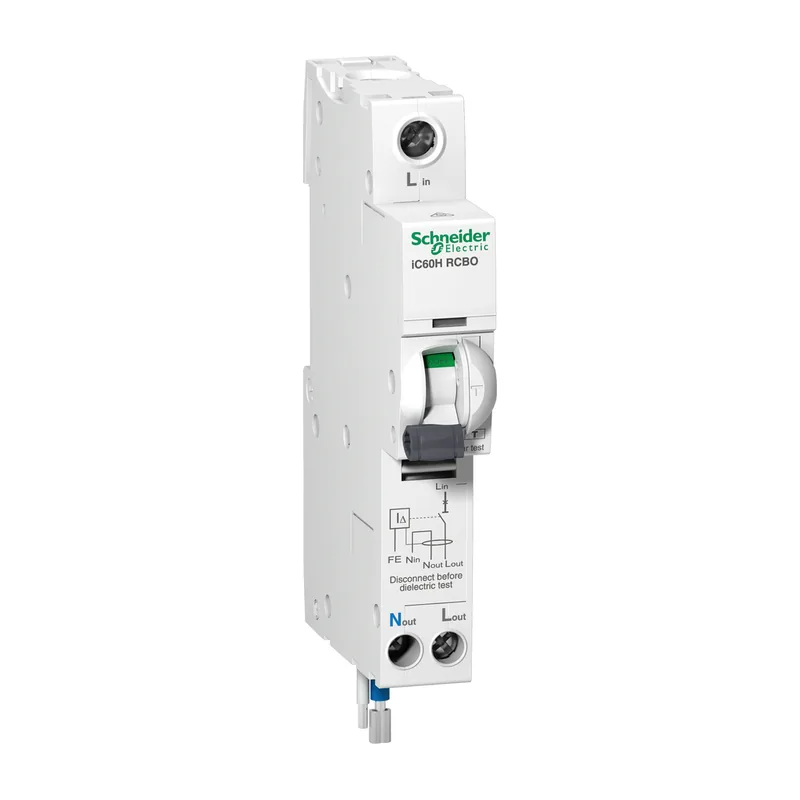

Acti9 iC60H2 RCBO (earth leakage plus overcurrent), 2P, 10 to 32 A

The Schneider Electric Acti9 iC60H2 RCBO (earth leakage plus overcurrent), 2P, 10 to 32 A is part of our RCBO (earth leakage + overcurrent) range. Models: A9D11210, A9D19210, A9D51210. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 230/240 V AC 50/60 Hz
Mounting: Clip-on, DIN rail
Rated frequency: 50 Hz
Series: Acti9 iC60H2

Features

Overload, short circuit and earth leakage protection in one device

Prices change with stock and quantity, so we quote on request.

Models in this range 12

Model	Poles	Rating	Curve	Breaking capacity	Leakage sensitivity	Type	WhatsApp for a quote
A9D11210	2P	10 A	C	10 kA	30 mA	A type	Ask A9D11210
A9D19210	2P	10 A	C	10 kA	30 mA	-	Ask A9D19210
A9D51210	2P	10 A	C	10 kA	300 mA	A type	Ask A9D51210
A9D11216	2P	16 A	C	10 kA	30 mA	-	Ask A9D11216
A9D19216	2P	16 A	C	10 kA	30 mA	-	Ask A9D19216
A9D51216	2P	16 A	C	10 kA	300 mA	A type	Ask A9D51216
A9D11220	2P	20 A	C	10 kA	30 mA	A type	Ask A9D11220
A9D19220	2P	20 A	C	10 kA	30 mA	-	Ask A9D19220
A9D51220	2P	20 A	C	10 kA	300 mA	A type	Ask A9D51220
A9D19225	2P	25 A	C	10 kA	30 mA	-	Ask A9D19225
A9D11232	2P	32 A	C	10 kA	30 mA	-	Ask A9D11232
A9D19232	2P	32 A	C	10 kA	30 mA	-	Ask A9D19232

Read from the maker's datasheet. Check the datasheet for the full specification.

Questions about this product

Which models are in the Schneider Electric Acti9 iC60H2 RCBO (earth leakage plus overcurrent), 2P, 10 to 32 A range?

The datasheet lists A9D11210, A9D19210, A9D51210, A9D11216, A9D19216, A9D51216, A9D11220, A9D19220, A9D51220, A9D19225, A9D11232, A9D19232. Quote the model when you ask for a price.

Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.
