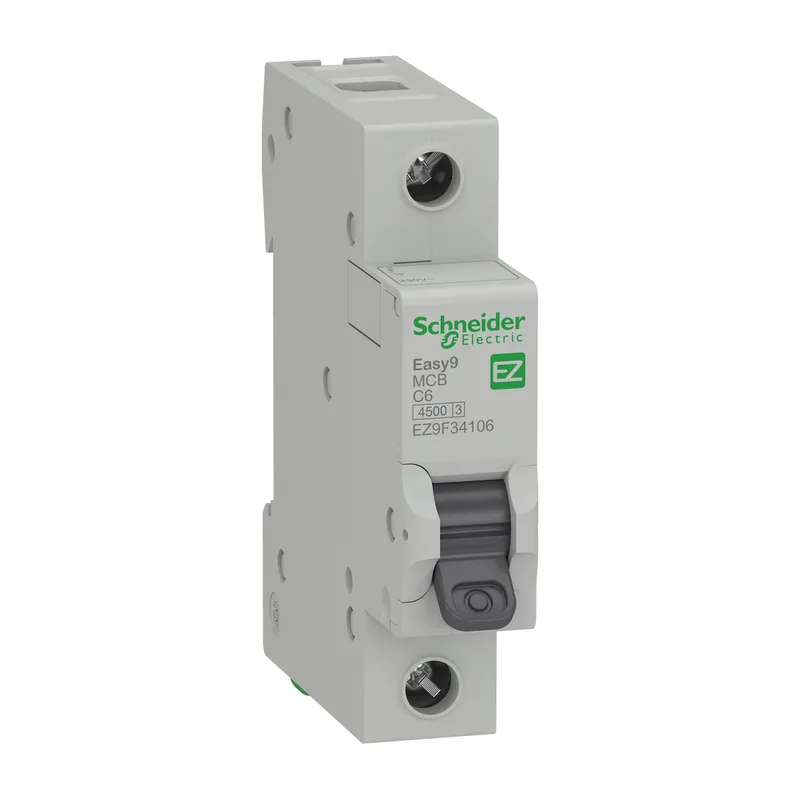

Easy9 Miniature Circuit Breaker (MCB), 1P to 4P, 6 to 63 A

The Schneider Electric Easy9 Miniature Circuit Breaker (MCB), 1P to 4P, 6 to 63 A is part of our MCB (miniature circuit breakers) range. Models: EZ9F34106, EZ9F34110, EZ9F34116. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Easy9
Rated voltage: 230 V AC 50 Hz
Mounting: Clip-on, DIN rail
Rated frequency: 50 Hz

Features

Thermal-magnetic trip
Contact position indicator

Prices change with stock and quantity, so we quote on request.

Models in this range 28

Model	Poles	Rating	Curve	Breaking capacity	WhatsApp for a quote
EZ9F34106	1P	6 A	C	4.5 kA	Ask EZ9F34106
EZ9F34110	1P	10 A	C	4.5 kA	Ask EZ9F34110
EZ9F34116	1P	16 A	C	4.5 kA	Ask EZ9F34116
EZ9F34120	1P	20 A	C	4.5 kA	Ask EZ9F34120
EZ9F34125	1P	25 A	C	4.5 kA	Ask EZ9F34125
EZ9F34132	1P	32 A	C	4.5 kA	Ask EZ9F34132
EZ9F34140	1P	40 A	C	4.5 kA	Ask EZ9F34140
EZ9F34150	1P	50 A	C	4.5 kA	Ask EZ9F34150
EZ9F34163	1P	63 A	C	4.5 kA	Ask EZ9F34163
EZ9F34206	2P	6 A	C	4.5 kA	Ask EZ9F34206
EZ9F34210	2P	10 A	C	4.5 kA	Ask EZ9F34210
EZ9F34216	2P	16 A	C	4.5 kA	Ask EZ9F34216
EZ9F34220	2P	20 A	C	4.5 kA	Ask EZ9F34220
EZ9F34225	2P	25 A	C	4.5 kA	Ask EZ9F34225
EZ9F34232	2P	32 A	C	4.5 kA	Ask EZ9F34232
EZ9F34240	2P	40 A	C	4.5 kA	Ask EZ9F34240
EZ9F34250	2P	50 A	C	4.5 kA	Ask EZ9F34250
EZ9F34263	2P	63 A	C	4.5 kA	Ask EZ9F34263
EZ9F34306	3P	6 A	C	4.5 kA	Ask EZ9F34306
EZ9F34310	3P	10 A	C	4.5 kA	Ask EZ9F34310
EZ9F34316	3P	16 A	C	4.5 kA	Ask EZ9F34316
EZ9F34320	3P	20 A	C	4.5 kA	Ask EZ9F34320
EZ9F34325	3P	25 A	C	4.5 kA	Ask EZ9F34325
EZ9F34332	3P	32 A	C	4.5 kA	Ask EZ9F34332
EZ9F34340	3P	40 A	C	4.5 kA	Ask EZ9F34340
EZ9F34350	3P	50 A	C	4.5 kA	Ask EZ9F34350
EZ9F34363	3P	63 A	C	4.5 kA	Ask EZ9F34363
EZ9F34463	4P	63 A	C	4.5 kA	Ask EZ9F34463

Read from the maker's datasheet. Check the datasheet for the full specification.

Goes with

Parts and accessories that fit this product.

Schneider Electric

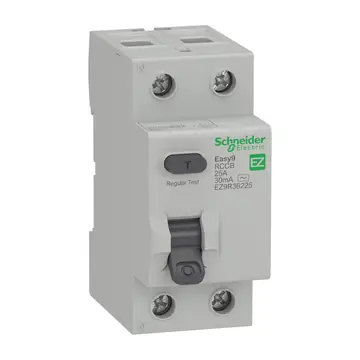

Easy9 Residual Current Circuit Breaker (RCCB), 2P to 4P, 25 to 63 A

EZ9R14225 · EZ9R26225

Schneider Electric

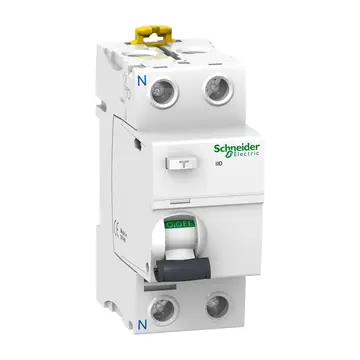

Acti9 iID Residual Current Circuit Breaker (RCCB) 2P, 16 to 100 A

A9R10216 · A9Z51216

Schneider Electric

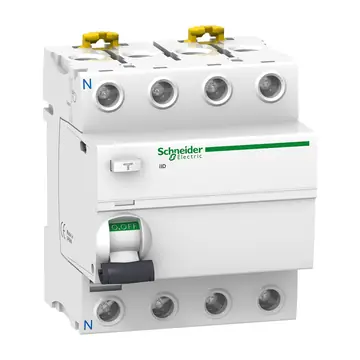

Acti9 iID Residual Current Circuit Breaker (RCCB) 4P, 25 to 100 A

A9R51425 · A9R71425

Prestige

10KV Surge Arrestor

PLS-10KV-SA

Questions about this product

Which models are in the Schneider Electric Easy9 Miniature Circuit Breaker (MCB), 1P to 4P, 6 to 63 A range?

The datasheet lists EZ9F34106, EZ9F34110, EZ9F34116, EZ9F34120, EZ9F34125, EZ9F34132, EZ9F34140, EZ9F34150, EZ9F34163, EZ9F34206, EZ9F34210, EZ9F34216. Quote the model when you ask for a price.

Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.
