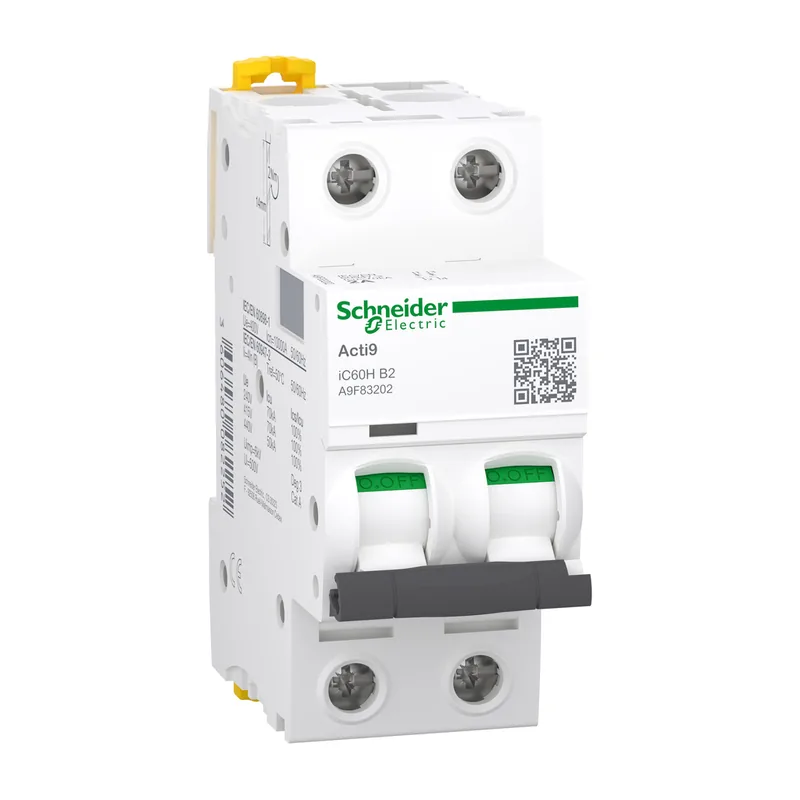

Acti9 iC60H Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A

Q: Which models are in the Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A range?

The datasheet lists A9F84270, A9F84201, A9F85201, A9F83202, A9F84202, A9F85202, A9F84203, A9F85203, A9F83204, A9F84204, A9F85204, A9F83206. Quote the model when you ask for a price.

Q: Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.

The Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A is part of our MCB (miniature circuit breakers) range. Models: A9F84270, A9F84201, A9F85201. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 125 V DC
Mounting: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
Series: Acti9 iC60H

Features

DIN rail modular breaker
Curves as listed in the table

Prices change with stock and quantity, so we quote on request.

Models in this range 37

Model	Poles	Rating	Curve	Breaking capacity	WhatsApp for a quote
A9F84270	2P	0.5 A	C	10 kA	Ask A9F84270
A9F84201	2P	1 A	C	10 kA	Ask A9F84201
A9F85201	2P	1 A	D	10 kA	Ask A9F85201
A9F83202	2P	2 A	B	10 kA	Ask A9F83202
A9F84202	2P	2 A	C	10 kA	Ask A9F84202
A9F85202	2P	2 A	D	10 kA	Ask A9F85202
A9F84203	2P	3 A	C	10 kA	Ask A9F84203
A9F85203	2P	3 A	D	10 kA	Ask A9F85203
A9F83204	2P	4 A	B	10 kA	Ask A9F83204
A9F84204	2P	4 A	C	10 kA	Ask A9F84204
A9F85204	2P	4 A	D	10 kA	Ask A9F85204
A9F83206	2P	6 A	B	10 kA	Ask A9F83206
A9F84206	2P	6 A	C	10 kA	Ask A9F84206
A9F85206	2P	6 A	D	10 kA	Ask A9F85206
A9F83210	2P	10 A	B	10 kA	Ask A9F83210
A9F84210	2P	10 A	C	10 kA	Ask A9F84210
A9F85210	2P	10 A	D	10 kA	Ask A9F85210
A9F84213	2P	13 A	C	10 kA	Ask A9F84213
A9F83216	2P	16 A	B	10 kA	Ask A9F83216
A9F84216	2P	16 A	C	10 kA	Ask A9F84216
A9F85216	2P	16 A	D	10 kA	Ask A9F85216
A9F83220	2P	20 A	B	10 kA	Ask A9F83220
A9F84220	2P	20 A	C	10 kA	Ask A9F84220
A9F85220	2P	20 A	D	10 kA	Ask A9F85220
A9F84225	2P	25 A	C	10 kA	Ask A9F84225
A9F85225	2P	25 A	D	10 kA	Ask A9F85225
A9F83232	2P	32 A	B	10 kA	Ask A9F83232
A9F84232	2P	32 A	C	10 kA	Ask A9F84232
A9F85232	2P	32 A	D	10 kA	Ask A9F85232
A9F83240	2P	40 A	B	10 kA	Ask A9F83240
A9F84240	2P	40 A	C	10 kA	Ask A9F84240
A9F85240	2P	40 A	D	10 kA	Ask A9F85240
A9F84250	2P	50 A	C	10 kA	Ask A9F84250
A9F85250	2P	50 A	D	10 kA	Ask A9F85250
A9F83263	2P	63 A	B	10 kA	Ask A9F83263
A9F84263	2P	63 A	C	10 kA	Ask A9F84263
A9F85263	2P	63 A	D	10 kA	Ask A9F85263

Read from the maker's datasheet. Check the datasheet for the full specification.
