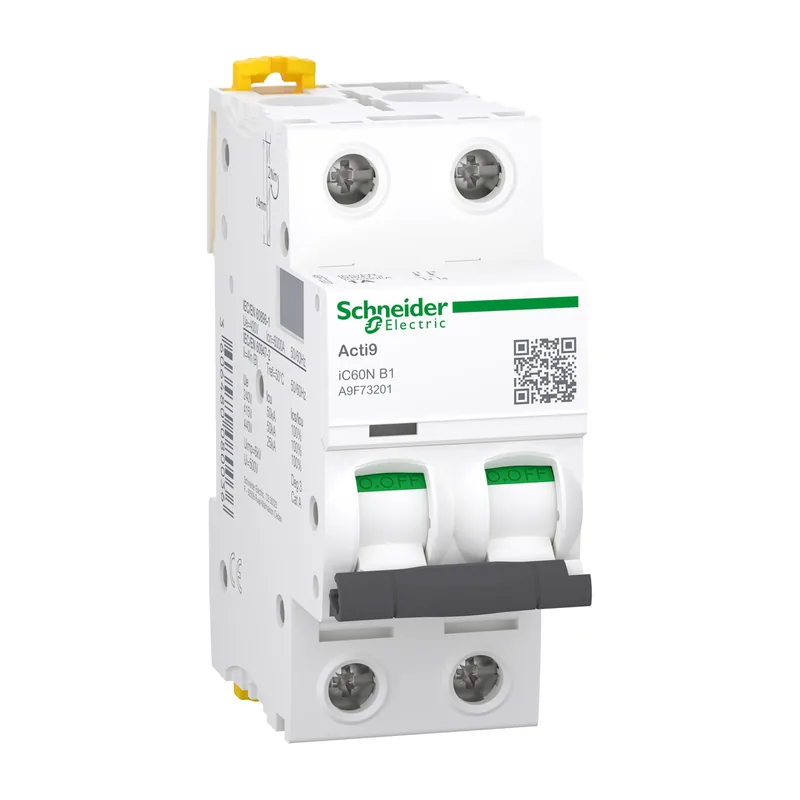

Acti9 iC60N Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A

Q: Which models are in the Schneider Electric Acti9 iC60N Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A range?

The datasheet lists A9F74270, A9F73201, A9F74201, A9F75201, A9F73202, A9F74202, A9F75202, A9F73203, A9F74203, A9F75203, A9F73204, A9F74204. Quote the model when you ask for a price.

Q: Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.

The Schneider Electric Acti9 iC60N Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A is part of our MCB (miniature circuit breakers) range. Models: A9F74270, A9F73201, A9F74201. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 125 V DC
Mounting: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
Series: Acti9 iC60N

Features

DIN rail modular breaker
Curves as listed in the table

Prices change with stock and quantity, so we quote on request.

Models in this range 40

Model	Poles	Rating	Curve	Breaking capacity	WhatsApp for a quote
A9F74270	2P	0.5 A	C	6 kA	Ask A9F74270
A9F73201	2P	1 A	B	6 kA	Ask A9F73201
A9F74201	2P	1 A	C	6 kA	Ask A9F74201
A9F75201	2P	1 A	D	6 kA	Ask A9F75201
A9F73202	2P	2 A	B	6 kA	Ask A9F73202
A9F74202	2P	2 A	C	6 kA	Ask A9F74202
A9F75202	2P	2 A	D	6 kA	Ask A9F75202
A9F73203	2P	3 A	B	6 kA	Ask A9F73203
A9F74203	2P	3 A	C	6 kA	Ask A9F74203
A9F75203	2P	3 A	D	6 kA	Ask A9F75203
A9F73204	2P	4 A	B	6 kA	Ask A9F73204
A9F74204	2P	4 A	C	6 kA	Ask A9F74204
A9F75204	2P	4 A	D	6 kA	Ask A9F75204
A9F73206	2P	6 A	B	6 kA	Ask A9F73206
A9F74206	2P	6 A	C	6 kA	Ask A9F74206
A9F75206	2P	6 A	D	6 kA	Ask A9F75206
A9F73210	2P	10 A	B	6 kA	Ask A9F73210
A9F74210	2P	10 A	C	6 kA	Ask A9F74210
A9F75210	2P	10 A	D	6 kA	Ask A9F75210
A9F73216	2P	16 A	B	6 kA	Ask A9F73216
A9F74216	2P	16 A	C	6 kA	Ask A9F74216
A9F75216	2P	16 A	D	6 kA	Ask A9F75216
A9F73220	2P	20 A	B	6 kA	Ask A9F73220
A9F74220	2P	20 A	C	6 kA	Ask A9F74220
A9F75220	2P	20 A	D	6 kA	Ask A9F75220
A9F73225	2P	25 A	B	6 kA	Ask A9F73225
A9F74225	2P	25 A	C	6 kA	Ask A9F74225
A9F75225	2P	25 A	D	6 kA	Ask A9F75225
A9F73232	2P	32 A	B	6 kA	Ask A9F73232
A9F74232	2P	32 A	C	6 kA	Ask A9F74232
A9F75232	2P	32 A	D	6 kA	Ask A9F75232
A9F73240	2P	40 A	B	6 kA	Ask A9F73240
A9F74240	2P	40 A	C	6 kA	Ask A9F74240
A9F75240	2P	40 A	D	6 kA	Ask A9F75240
A9F73250	2P	50 A	B	6 kA	Ask A9F73250
A9F74250	2P	50 A	C	6 kA	Ask A9F74250
A9F75250	2P	50 A	D	6 kA	Ask A9F75250
A9F73263	2P	63 A	B	6 kA	Ask A9F73263
A9F74263	2P	63 A	C	6 kA	Ask A9F74263
A9F75263	2P	63 A	D	6 kA	Ask A9F75263

Read from the maker's datasheet. Check the datasheet for the full specification.
