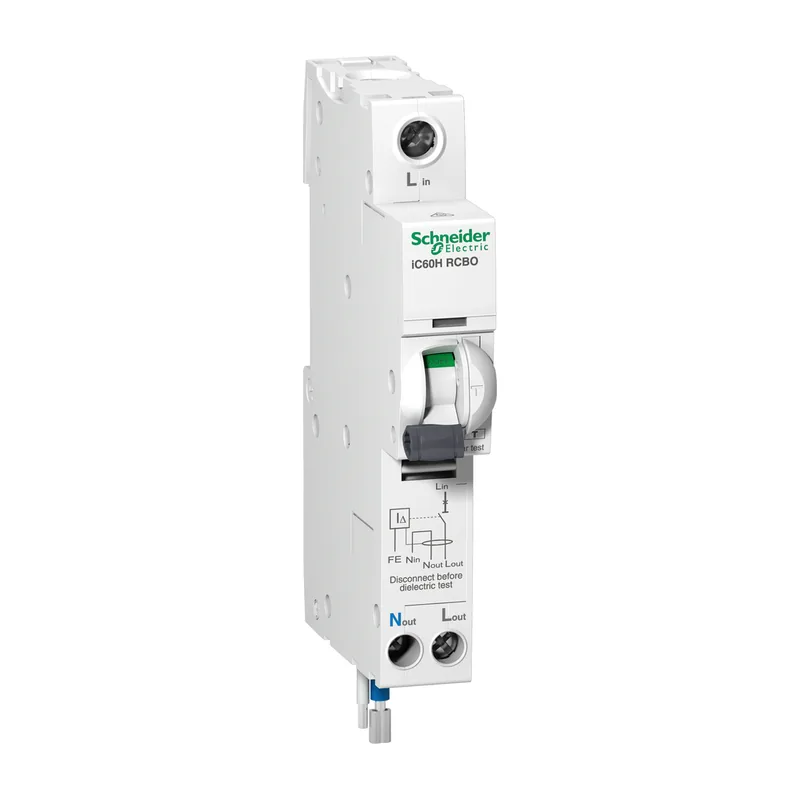

Acti9 iC60H RCBO (earth leakage plus overcurrent), 1P+N, 6 to 45 A

The Schneider Electric Acti9 iC60H RCBO (earth leakage plus overcurrent), 1P+N, 6 to 45 A is part of our RCBO (earth leakage + overcurrent) range. Models: A9D10806, A9D11806, A9D12806. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 230/240 V AC 50/60 Hz
Mounting: Clip-on, DIN rail
Rated frequency: 50 Hz
Series: Acti9 iC60H

Features

Overload, short circuit and earth leakage protection in one device

Prices change with stock and quantity, so we quote on request.

Models in this range 32

Model	Poles	Rating	Curve	Breaking capacity	Leakage sensitivity	Type	WhatsApp for a quote
A9D10806	1P+N	6 A	C	10 kA	10 mA	-	Ask A9D10806
A9D11806	1P+N	6 A	C	10 kA	30 mA	-	Ask A9D11806
A9D12806	1P+N	6 A	C	10 kA	100 mA	-	Ask A9D12806
A9D10810	1P+N	10 A	C	10 kA	10 mA	-	Ask A9D10810
A9D11810	1P+N	10 A	C	10 kA	30 mA	-	Ask A9D11810
A9D12810	1P+N	10 A	C	10 kA	100 mA	-	Ask A9D12810
A9D31810	1P+N	10 A	B	10 kA	30 mA	A type	Ask A9D31810
A9D51810	1P+N	10 A	D	10 kA	30 mA	A type	Ask A9D51810
A9D10816	1P+N	16 A	C	10 kA	10 mA	-	Ask A9D10816
A9D11816	1P+N	16 A	C	10 kA	30 mA	-	Ask A9D11816
A9D12816	1P+N	16 A	C	10 kA	100 mA	-	Ask A9D12816
A9D19816	1P+N	16 A	C	10 kA	30 mA	-	Ask A9D19816
A9D31816	1P+N	16 A	B	10 kA	30 mA	-	Ask A9D31816
A9D51816	1P+N	16 A	D	10 kA	30 mA	A type	Ask A9D51816
A9D10820	1P+N	20 A	C	10 kA	10 mA	-	Ask A9D10820
A9D11820	1P+N	20 A	C	10 kA	30 mA	-	Ask A9D11820
A9D12820	1P+N	20 A	C	10 kA	100 mA	-	Ask A9D12820
A9D19820	1P+N	20 A	C	10 kA	30 mA	-	Ask A9D19820
A9D31820	1P+N	20 A	B	10 kA	30 mA	A type	Ask A9D31820
A9D11825	1P+N	25 A	C	10 kA	30 mA	-	Ask A9D11825
A9D12825	1P+N	25 A	C	10 kA	100 mA	-	Ask A9D12825
A9D05832	1P+N	32 A	C	10 kA	30 mA	A type	Ask A9D05832
A9D10832	1P+N	32 A	C	10 kA	10 mA	-	Ask A9D10832
A9D11832	1P+N	32 A	C	10 kA	30 mA	-	Ask A9D11832
A9D12832	1P+N	32 A	C	10 kA	100 mA	-	Ask A9D12832
A9D19832	1P+N	32 A	C	10 kA	30 mA	-	Ask A9D19832
A9D31832	1P+N	32 A	B	10 kA	30 mA	A type	Ask A9D31832
A9D05840	1P+N	40 A	C	10 kA	30 mA	A type	Ask A9D05840
A9D11840	1P+N	40 A	C	10 kA	30 mA	-	Ask A9D11840
A9D12840	1P+N	40 A	C	10 kA	100 mA	-	Ask A9D12840
A9D11845	1P+N	45 A	C	10 kA	30 mA	-	Ask A9D11845
A9D12845	1P+N	45 A	C	10 kA	100 mA	-	Ask A9D12845

Read from the maker's datasheet. Check the datasheet for the full specification.

Questions about this product

Which models are in the Schneider Electric Acti9 iC60H RCBO (earth leakage plus overcurrent), 1P+N, 6 to 45 A range?

The datasheet lists A9D10806, A9D11806, A9D12806, A9D10810, A9D11810, A9D12810, A9D31810, A9D51810, A9D10816, A9D11816, A9D12816, A9D19816. Quote the model when you ask for a price.

Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.
