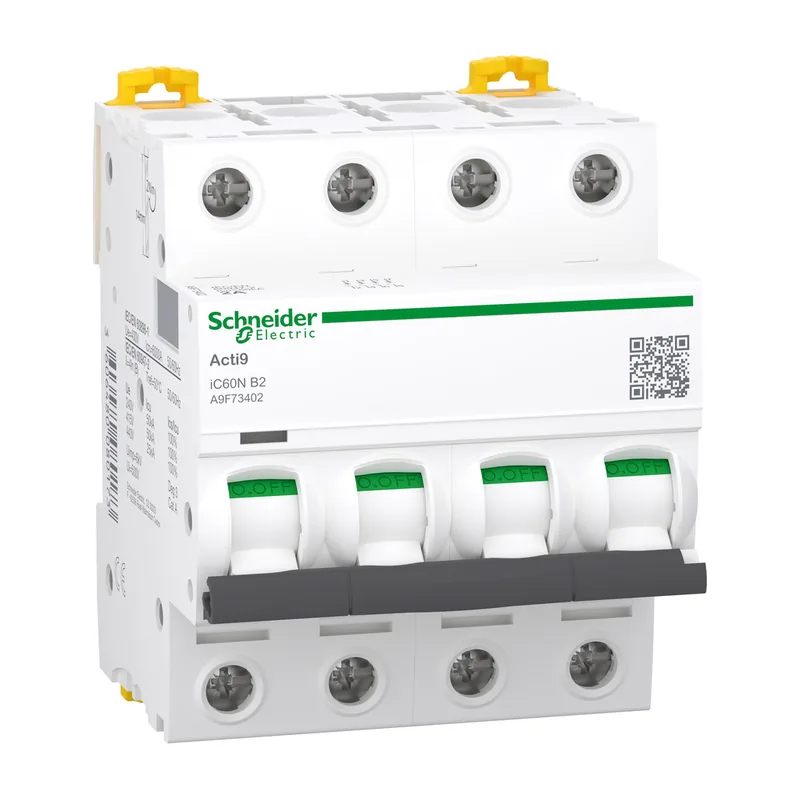

Acti9 iC60N Miniature Circuit Breaker (MCB) 4P, 1 to 63 A

Q: Which models are in the Schneider Electric Acti9 iC60N Miniature Circuit Breaker (MCB) 4P, 1 to 63 A range?

The datasheet lists A9F74401, A9F75401, A9F73402, A9F74402, A9F75402, A9F73403, A9F74403, A9F75403, A9F74404, A9F75404, A9F73406, A9F74406. Quote the model when you ask for a price.

Q: Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.

The Schneider Electric Acti9 iC60N Miniature Circuit Breaker (MCB) 4P, 1 to 63 A is part of our MCB (miniature circuit breakers) range. Models: A9F74401, A9F75401, A9F73402. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 250 V DC
Mounting: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
Series: Acti9 iC60N

Features

DIN rail modular breaker
Curves as listed in the table

Prices change with stock and quantity, so we quote on request.

Models in this range 37

Model	Poles	Rating	Curve	Breaking capacity	WhatsApp for a quote
A9F74401	4P	1 A	C	6 kA	Ask A9F74401
A9F75401	4P	1 A	D	6 kA	Ask A9F75401
A9F73402	4P	2 A	B	6 kA	Ask A9F73402
A9F74402	4P	2 A	C	6 kA	Ask A9F74402
A9F75402	4P	2 A	D	6 kA	Ask A9F75402
A9F73403	4P	3 A	B	6 kA	Ask A9F73403
A9F74403	4P	3 A	C	6 kA	Ask A9F74403
A9F75403	4P	3 A	D	6 kA	Ask A9F75403
A9F74404	4P	4 A	C	6 kA	Ask A9F74404
A9F75404	4P	4 A	D	6 kA	Ask A9F75404
A9F73406	4P	6 A	B	6 kA	Ask A9F73406
A9F74406	4P	6 A	C	6 kA	Ask A9F74406
A9F75406	4P	6 A	D	6 kA	Ask A9F75406
A9F73410	4P	10 A	B	6 kA	Ask A9F73410
A9F74410	4P	10 A	C	6 kA	Ask A9F74410
A9F75410	4P	10 A	D	6 kA	Ask A9F75410
A9F73416	4P	16 A	B	6 kA	Ask A9F73416
A9F74416	4P	16 A	C	6 kA	Ask A9F74416
A9F75416	4P	16 A	D	6 kA	Ask A9F75416
A9F73420	4P	20 A	B	6 kA	Ask A9F73420
A9F74420	4P	20 A	C	6 kA	Ask A9F74420
A9F75420	4P	20 A	D	6 kA	Ask A9F75420
A9F73425	4P	25 A	B	6 kA	Ask A9F73425
A9F74425	4P	25 A	C	6 kA	Ask A9F74425
A9F75425	4P	25 A	D	6 kA	Ask A9F75425
A9F73432	4P	32 A	B	6 kA	Ask A9F73432
A9F74432	4P	32 A	C	6 kA	Ask A9F74432
A9F75432	4P	32 A	D	6 kA	Ask A9F75432
A9F73440	4P	40 A	B	6 kA	Ask A9F73440
A9F74440	4P	40 A	C	6 kA	Ask A9F74440
A9F75440	4P	40 A	D	6 kA	Ask A9F75440
A9F73450	4P	50 A	B	6 kA	Ask A9F73450
A9F74450	4P	50 A	C	6 kA	Ask A9F74450
A9F75450	4P	50 A	D	6 kA	Ask A9F75450
A9F73463	4P	63 A	B	6 kA	Ask A9F73463
A9F74463	4P	63 A	C	6 kA	Ask A9F74463
A9F75463	4P	63 A	D	6 kA	Ask A9F75463

Read from the maker's datasheet. Check the datasheet for the full specification.
