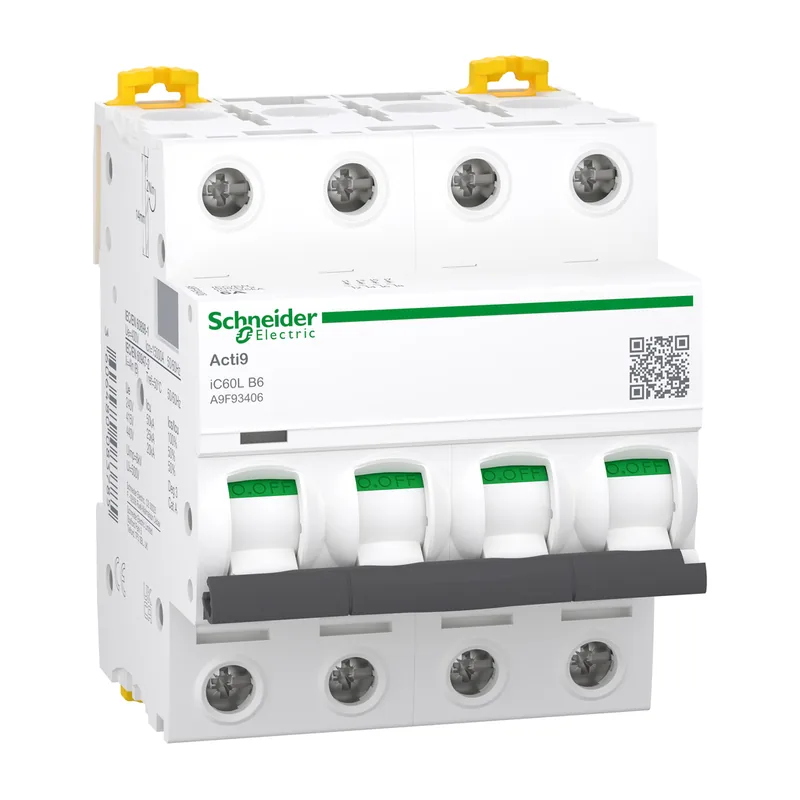

Acti9 iC60L Miniature Circuit Breaker (MCB) 4P, 1 to 63 A

Q: Which models are in the Schneider Electric Acti9 iC60L Miniature Circuit Breaker (MCB) 4P, 1 to 63 A range?

The datasheet lists A9F94401, A9F94402, A9F95402, A9F94403, A9F93406, A9F94406, A9F93410, A9F94410, A9F93416, A9F94416, A9F93420, A9F94420. Quote the model when you ask for a price.

Q: Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.

The Schneider Electric Acti9 iC60L Miniature Circuit Breaker (MCB) 4P, 1 to 63 A is part of our MCB (miniature circuit breakers) range. Models: A9F94401, A9F94402, A9F95402. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 250 V DC
Mounting: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
Series: Acti9 iC60L

Features

DIN rail modular breaker
Curves as listed in the table

Prices change with stock and quantity, so we quote on request.

Models in this range 20

Model	Poles	Rating	Curve	Breaking capacity	WhatsApp for a quote
A9F94401	4P	1 A	C	15 kA	Ask A9F94401
A9F94402	4P	2 A	C	15 kA	Ask A9F94402
A9F95402	4P	2 A	K	15 kA	Ask A9F95402
A9F94403	4P	3 A	C	15 kA	Ask A9F94403
A9F93406	4P	6 A	B	15 kA	Ask A9F93406
A9F94406	4P	6 A	C	15 kA	Ask A9F94406
A9F93410	4P	10 A	B	15 kA	Ask A9F93410
A9F94410	4P	10 A	C	15 kA	Ask A9F94410
A9F93416	4P	16 A	B	15 kA	Ask A9F93416
A9F94416	4P	16 A	C	15 kA	Ask A9F94416
A9F93420	4P	20 A	B	15 kA	Ask A9F93420
A9F94420	4P	20 A	C	15 kA	Ask A9F94420
A9F94425	4P	25 A	C	15 kA	Ask A9F94425
A9F94432	4P	32 A	C	15 kA	Ask A9F94432
A9F95432	4P	32 A	K	15 kA	Ask A9F95432
A9F93440	4P	40 A	B	15 kA	Ask A9F93440
A9F94440	4P	40 A	C	15 kA	Ask A9F94440
A9F94450	4P	50 A	C	70 kA	Ask A9F94450
A9F93463	4P	63 A	B	70 kA	Ask A9F93463
A9F94463	4P	63 A	C	70 kA	Ask A9F94463

Read from the maker's datasheet. Check the datasheet for the full specification.
