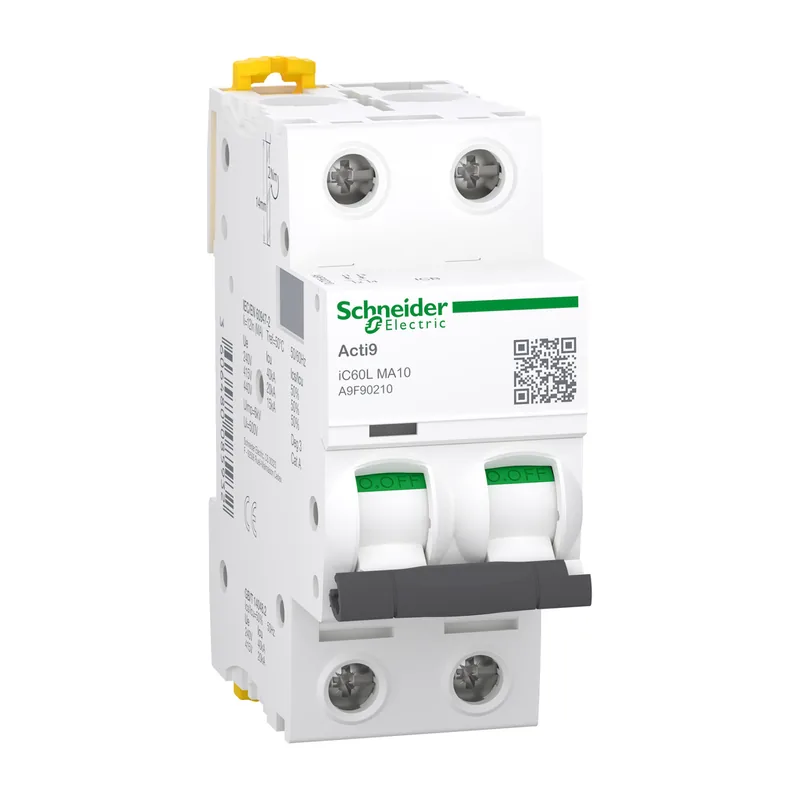

Acti9 iC60L Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A

The Schneider Electric Acti9 iC60L Miniature Circuit Breaker (MCB) 2P, 0.5 to 63 A is part of our MCB (miniature circuit breakers) range. Models: A9F94270, A9F94201, A9F92202. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Range: Acti9
Rated voltage: 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz
Mounting: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
Series: Acti9 iC60L

Features

DIN rail modular breaker
Curves as listed in the table

Prices change with stock and quantity, so we quote on request.

Models in this range 36

Model	Poles	Rating	Curve	Breaking capacity	WhatsApp for a quote
A9F94270	2P	0.5 A	C	15 kA	Ask A9F94270
A9F94201	2P	1 A	C	15 kA	Ask A9F94201
A9F92202	2P	2 A	Z	15 kA	Ask A9F92202
A9F93202	2P	2 A	B	15 kA	Ask A9F93202
A9F94202	2P	2 A	C	15 kA	Ask A9F94202
A9F95202	2P	2 A	K	15 kA	Ask A9F95202
A9F94203	2P	3 A	C	15 kA	Ask A9F94203
A9F95203	2P	3 A	K	15 kA	Ask A9F95203
A9F92204	2P	4 A	Z	15 kA	Ask A9F92204
A9F94204	2P	4 A	C	15 kA	Ask A9F94204
A9F92206	2P	6 A	Z	15 kA	Ask A9F92206
A9F93206	2P	6 A	B	15 kA	Ask A9F93206
A9F94206	2P	6 A	C	15 kA	Ask A9F94206
A9F95206	2P	6 A	K	15 kA	Ask A9F95206
A9F90210	2P	10 A	MA	40 kA	Ask A9F90210
A9F93210	2P	10 A	B	15 kA	Ask A9F93210
A9F94210	2P	10 A	C	15 kA	Ask A9F94210
A9F95210	2P	10 A	K	15 kA	Ask A9F95210
A9F90216	2P	16 A	MA	40 kA	Ask A9F90216
A9F93216	2P	16 A	B	15 kA	Ask A9F93216
A9F94216	2P	16 A	C	15 kA	Ask A9F94216
A9F95216	2P	16 A	K	15 kA	Ask A9F95216
A9F94220	2P	20 A	C	15 kA	Ask A9F94220
A9F95220	2P	20 A	K	15 kA	Ask A9F95220
A9F90225	2P	25 A	MA	30 kA	Ask A9F90225
A9F94225	2P	25 A	C	15 kA	Ask A9F94225
A9F95225	2P	25 A	K	15 kA	Ask A9F95225
A9F93232	2P	32 A	B	15 kA	Ask A9F93232
A9F94232	2P	32 A	C	15 kA	Ask A9F94232
A9F95232	2P	32 A	K	15 kA	Ask A9F95232
A9F93240	2P	40 A	B	15 kA	Ask A9F93240
A9F94240	2P	40 A	C	15 kA	Ask A9F94240
A9F93250	2P	50 A	B	70 kA	Ask A9F93250
A9F94250	2P	50 A	C	70 kA	Ask A9F94250
A9F93263	2P	63 A	B	70 kA	Ask A9F93263
A9F94263	2P	63 A	C	70 kA	Ask A9F94263

Read from the maker's datasheet. Check the datasheet for the full specification.
