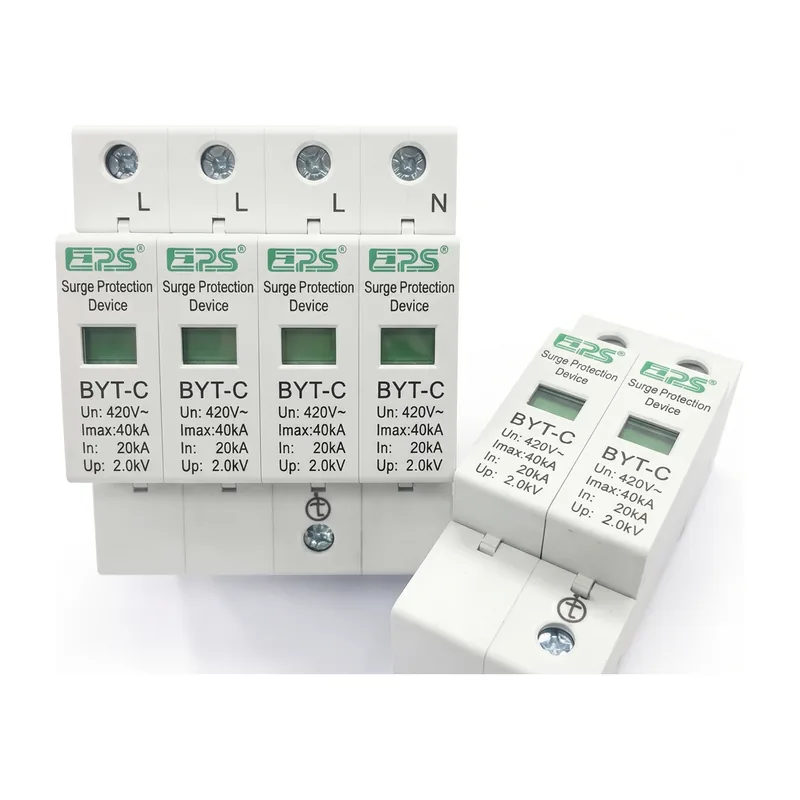

EPS (Utama Switchgear) Surge Protectors BY7-C and VCT-T2 C40 (Type 2)
EPS (Utama Switchgear)

Surge Protectors BY7-C and VCT-T2 C40 (Type 2)

The EPS (Utama Switchgear) Surge Protectors BY7-C and VCT-T2 C40 (Type 2) is part of our surge protection (spd) range. Models: BY7-C, VCT-T2 C40. It is rated IP20 in enclosure. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.

WhatsApp for a quote

Stock: Ask us for stock and lead time.

Key specifications

Frequency
50/60Hz
Terminals
35 mm2 rigid / 25 mm2 flexible
Mounting
DIN EN 50022
IP rating
IP20 in enclosure
Temperature
-40..+80C

Features

  • Plug-in cartridges
  • Backup fuse for VCT-T2: 125A gL/gG

Prices change with stock and quantity, so we quote on request.

Models in this range 2

ModelTypeWhatsApp for a quote
BY7-CUn 220/380V, Uc 385/420V, In 20 kA, Imax 40 kA, Up <2.0 kVAsk BY7-C
VCT-T2 C40Uc 275V, In 20 kA, Imax 40 kA, Up 1.5 kVAsk VCT-T2 C40

Read from the maker's datasheet. Check the datasheet for the full specification.

Questions about this product

Which models are in the EPS (Utama Switchgear) Surge Protectors BY7-C and VCT-T2 C40 (Type 2) range?

The datasheet lists BY7-C, VCT-T2 C40. Quote the model when you ask for a price.

Can I use it outdoors or in a bathroom?

It is rated IP20, which is for dry indoor use only.

Is it in stock, and how soon can I get it?

Ask us for stock and lead time. Send the model and quantity on WhatsApp to +60 10-761 7595.
