AireGard

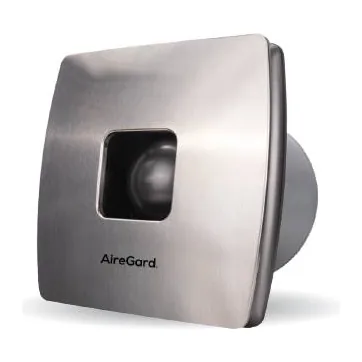

Metal Compact Series MC-90 / MC-150, Wall and Glass Mount Ventilator
The AireGard Metal Compact Series MC-90 / MC-150, Wall and Glass Mount Ventilator is part of our wall & window ventilation fan range. Models: MC-90, MC-150. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.
Stock: Ask us for stock and lead time.
Key specifications
- Motor type
- AC shaded-pole
- Speeds
- 1
- Speed (RPM)
- 2250-2550 (MC-90), 2000 (MC-150)
- Airflow
- 90 CFM (MC-90), 147 CFM (MC-150)
- Power consumption
- 12 W (MC-90), 20 W (MC-150)
- Noise level
- up to 48 dB (MC-90), 41 dB (MC-150)
- Duct size
- 100 mm (MC-90), 150 mm (MC-150)
- Panel size
- 167 x 158 mm (MC-90), 195 x 195 mm (MC-150)
- Cut-out
- 100 mm (MC-90), 147 mm (MC-150)
- Height
- 167 mm (MC-90), 195 mm (MC-150)
- Weight
- 0.6 kg (MC-90), 0.95 kg (MC-150)
- Mounting
- Wall or glass mounted
- Warranty
- 3 years
Features
- Compact brushed-metal panel
- A DC-motor MC-90DC is also on the supplier price list but has no spec sheet on the website
Prices change with stock and quantity, so we quote on request.
