AireGard

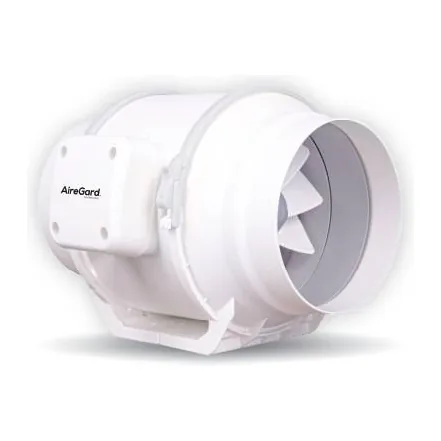

Mixed Flow Series AXA-170 / 340 / 600, In-Line Duct Fan
The AireGard Mixed Flow Series AXA-170 / 340 / 600, In-Line Duct Fan is part of our in-line duct fan range. Models: AXA-170, AXA-340, AXA-600. Available at D-One Electrical in Taman Bukit Indah, Iskandar Puteri, Johor. Send the model and quantity on WhatsApp for price and stock.
Stock: Ask us for stock and lead time.
Key specifications
- Motor type
- AC, impeller blades with guide vanes
- Speeds
- 2
- Speed (RPM)
- 1980 / 2390 (AXA-170), 2070 / 2560 (AXA-340), 2180 / 2760 (AXA-600)
- Airflow
- 129 / 164 CFM (AXA-170), 280 / 335 CFM (AXA-340), 488 / 588 CFM (AXA-600)
- Power consumption
- 36 / 40 W (AXA-170), 61 / 65 W (AXA-340), 88 / 100 W (AXA-600)
- Noise level
- 25 / 30 dB (AXA-170), 30 / 35 dB (AXA-340), 45 / 50 dB (AXA-600)
- Duct size
- 100 / 150 / 200 mm
- Weight
- 1.8 kg (AXA-170), 2.2 kg (AXA-340), 3.1 kg (AXA-600)
- Voltage
- 240V, 50 Hz
- Mounting
- Ceiling mounted, vertical or horizontal
- Warranty
- 3 years
Features
- For supply or exhaust duct systems
- Each model sold as machine only, or as a package with wall vent kit, louvers and flexible hose
Prices change with stock and quantity, so we quote on request.
