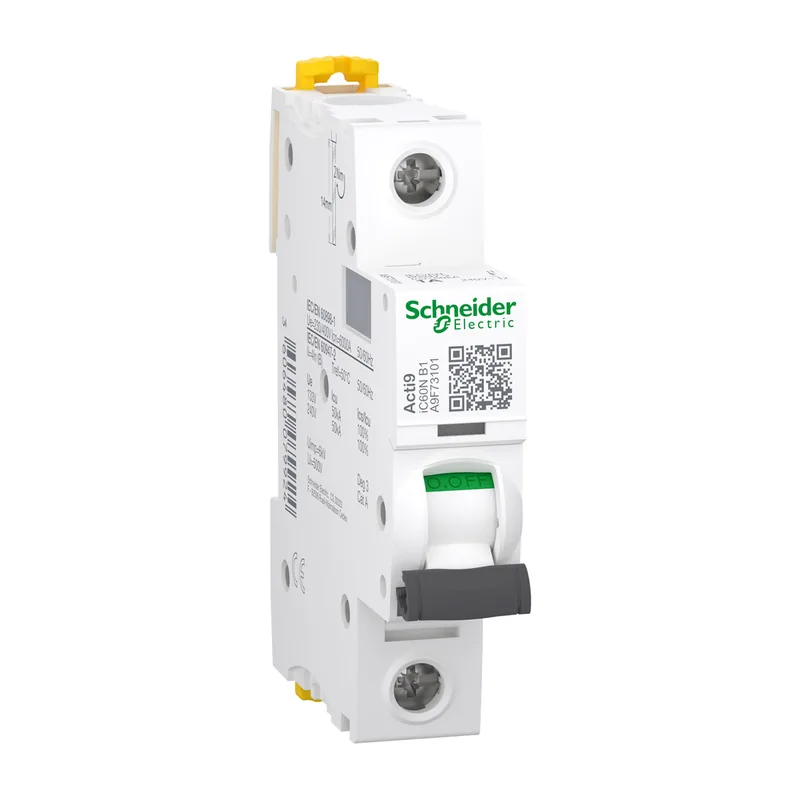

Acti9 iC60N Miniature Circuit Breaker (MCB) 1P, 0.5 to 63 A

Q: 有现货吗？多久能拿到？

库存与交货期请向我们查询。 把型号与数量WhatsApp至 +60 10-761 7595。

Schneider Electric Acti9 iC60N Miniature Circuit Breaker (MCB) 1P, 0.5 to 63 A属于我们的微型断路器 (MCB)系列。型号：A9F74170、A9F73101、A9F74101。可在柔佛依斯干达公主城武吉英达D-One电器选购，WhatsApp告知型号与数量即可询价。

WhatsApp询价

库存: 库存与交货期请向我们查询。

系列: Acti9
Rated voltage: 12...60 V AC 50/60 Hz; 100...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 12...60 V DC; 60...72 V DC
安装方式: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
系列: Acti9 iC60N

产品特点

DIN rail modular breaker
Curves as listed in the table

价格随库存与数量变动，请询价。

本系列型号 37

型号	极数	额定电流	脱扣曲线	分断能力	WhatsApp询价
A9F74170	1P	0.5 A	C	6 kA	询价 A9F74170
A9F73101	1P	1 A	B	6 kA	询价 A9F73101
A9F74101	1P	1 A	C	6 kA	询价 A9F74101
A9F75101	1P	1 A	D	6 kA	询价 A9F75101
A9F73102	1P	2 A	B	6 kA	询价 A9F73102
A9F74102	1P	2 A	C	6 kA	询价 A9F74102
A9F75102	1P	2 A	D	6 kA	询价 A9F75102
A9F73103	1P	3 A	B	6 kA	询价 A9F73103
A9F74103	1P	3 A	C	6 kA	询价 A9F74103
A9F75103	1P	3 A	D	6 kA	询价 A9F75103
A9F73104	1P	4 A	B	6 kA	询价 A9F73104
A9F74104	1P	4 A	C	6 kA	询价 A9F74104
A9F75104	1P	4 A	D	6 kA	询价 A9F75104
A9F73106	1P	6 A	B	6 kA	询价 A9F73106
A9F74106	1P	6 A	C	6 kA	询价 A9F74106
A9F75106	1P	6 A	D	6 kA	询价 A9F75106
A9F73110	1P	10 A	B	6 kA	询价 A9F73110
A9F74110	1P	10 A	C	6 kA	询价 A9F74110
A9F75110	1P	10 A	D	6 kA	询价 A9F75110
A9F73116	1P	16 A	B	6 kA	询价 A9F73116
A9F74116	1P	16 A	C	6 kA	询价 A9F74116
A9F75116	1P	16 A	D	6 kA	询价 A9F75116
A9F73120	1P	20 A	B	6 kA	询价 A9F73120
A9F74120	1P	20 A	C	6 kA	询价 A9F74120
A9F75120	1P	20 A	D	6 kA	询价 A9F75120
A9F73125	1P	25 A	B	6 kA	询价 A9F73125
A9F74125	1P	25 A	C	6 kA	询价 A9F74125
A9F75125	1P	25 A	D	6 kA	询价 A9F75125
A9F73132	1P	32 A	B	6 kA	询价 A9F73132
A9F74132	1P	32 A	C	6 kA	询价 A9F74132
A9F75132	1P	32 A	D	6 kA	询价 A9F75132
A9F74140	1P	40 A	C	6 kA	询价 A9F74140
A9F75140	1P	40 A	D	6 kA	询价 A9F75140
A9F74150	1P	50 A	C	6 kA	询价 A9F74150
A9F73163	1P	63 A	B	6 kA	询价 A9F73163
A9F74163	1P	63 A	C	6 kA	询价 A9F74163
A9F75163	1P	63 A	D	6 kA	询价 A9F75163
