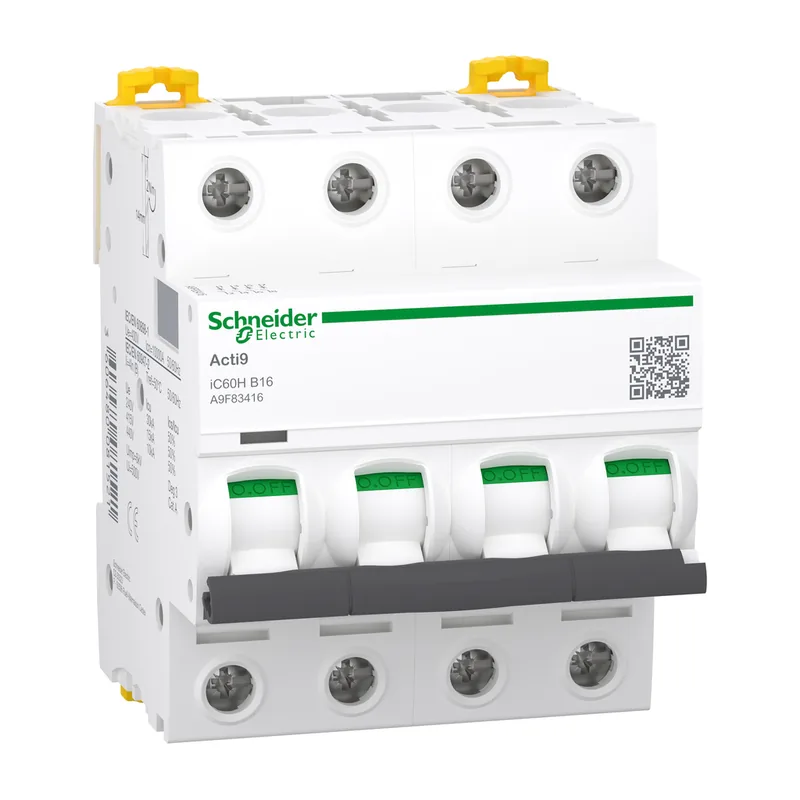

Acti9 iC60H Miniature Circuit Breaker (MCB) 4P, 1 to 63 A

Q: Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB) 4P, 1 to 63 A有哪些型号？

规格书列出：A9F84401、A9F84402、A9F84403、A9F84404、A9F83406、A9F84406、A9F85406、A9F84410、A9F85410、A9F84413、A9F83416、A9F84416。询价时请告知型号。

Q: 有现货吗？多久能拿到？

库存与交货期请向我们查询。 把型号与数量WhatsApp至 +60 10-761 7595。

Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB) 4P, 1 to 63 A属于我们的微型断路器 (MCB)系列。型号：A9F84401、A9F84402、A9F84403。可在柔佛依斯干达公主城武吉英达D-One电器选购，WhatsApp告知型号与数量即可询价。

WhatsApp询价

库存: 库存与交货期请向我们查询。

系列: Acti9
Rated voltage: 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 250 V DC
安装方式: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
系列: Acti9 iC60H

产品特点

DIN rail modular breaker
Curves as listed in the table

价格随库存与数量变动，请询价。

本系列型号 29

型号	极数	额定电流	脱扣曲线	分断能力	WhatsApp询价
A9F84401	4P	1 A	C	10 kA	询价 A9F84401
A9F84402	4P	2 A	C	10 kA	询价 A9F84402
A9F84403	4P	3 A	C	10 kA	询价 A9F84403
A9F84404	4P	4 A	C	10 kA	询价 A9F84404
A9F83406	4P	6 A	B	10 kA	询价 A9F83406
A9F84406	4P	6 A	C	10 kA	询价 A9F84406
A9F85406	4P	6 A	D	10 kA	询价 A9F85406
A9F84410	4P	10 A	C	10 kA	询价 A9F84410
A9F85410	4P	10 A	D	10 kA	询价 A9F85410
A9F84413	4P	13 A	C	10 kA	询价 A9F84413
A9F83416	4P	16 A	B	10 kA	询价 A9F83416
A9F84416	4P	16 A	C	10 kA	询价 A9F84416
A9F85416	4P	16 A	D	10 kA	询价 A9F85416
A9F83420	4P	20 A	B	10 kA	询价 A9F83420
A9F84420	4P	20 A	C	10 kA	询价 A9F84420
A9F85420	4P	20 A	D	10 kA	询价 A9F85420
A9F84425	4P	25 A	C	10 kA	询价 A9F84425
A9F85425	4P	25 A	D	10 kA	询价 A9F85425
A9F83432	4P	32 A	B	10 kA	询价 A9F83432
A9F84432	4P	32 A	C	10 kA	询价 A9F84432
A9F85432	4P	32 A	D	10 kA	询价 A9F85432
A9F83440	4P	40 A	B	10 kA	询价 A9F83440
A9F84440	4P	40 A	C	10 kA	询价 A9F84440
A9F85440	4P	40 A	D	10 kA	询价 A9F85440
A9F84450	4P	50 A	C	10 kA	询价 A9F84450
A9F85450	4P	50 A	D	10 kA	询价 A9F85450
A9F83463	4P	63 A	B	10 kA	询价 A9F83463
A9F84463	4P	63 A	C	10 kA	询价 A9F84463
A9F85463	4P	63 A	D	10 kA	询价 A9F85463
