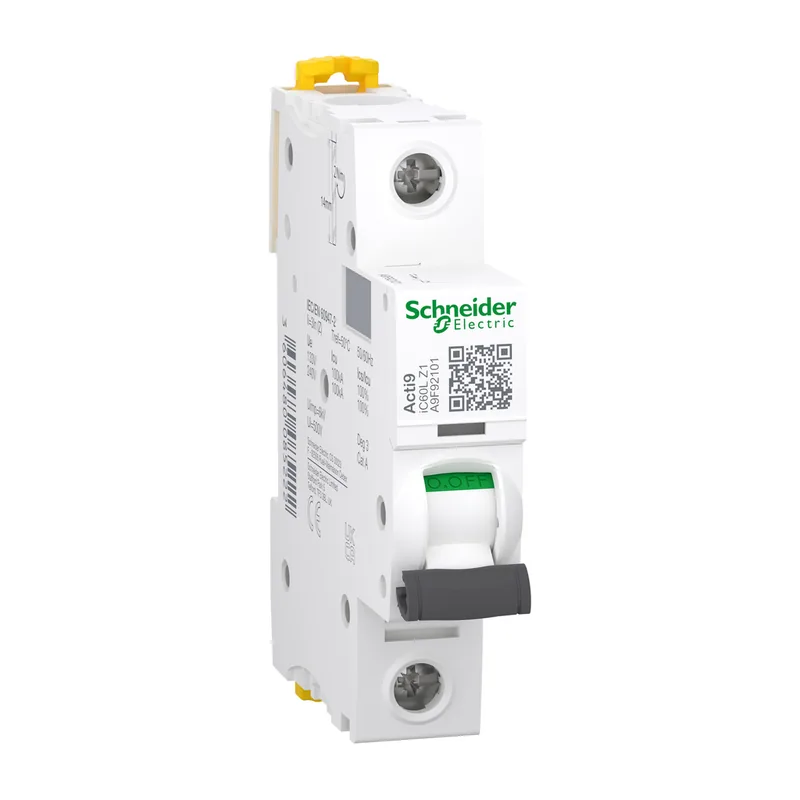

Acti9 iC60L Miniature Circuit Breaker (MCB) 1P, 1 to 63 A

Q: 有现货吗？多久能拿到？

库存与交货期请向我们查询。 把型号与数量WhatsApp至 +60 10-761 7595。

Schneider Electric Acti9 iC60L Miniature Circuit Breaker (MCB) 1P, 1 to 63 A属于我们的微型断路器 (MCB)系列。型号：A9F92101、A9F94101、A9F93102。可在柔佛依斯干达公主城武吉英达D-One电器选购，WhatsApp告知型号与数量即可询价。

WhatsApp询价

库存: 库存与交货期请向我们查询。

系列: Acti9
Rated voltage: 12...60 V AC 50/60 Hz; 100...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 12...60 V DC; 60...72 V DC
安装方式: Clip-on; Removable comb busbar installed, 35 mm DIN rail
Rated frequency: 50/60 Hz
系列: Acti9 iC60L

产品特点

DIN rail modular breaker
Curves as listed in the table

价格随库存与数量变动，请询价。

本系列型号 28

型号	极数	额定电流	脱扣曲线	分断能力	WhatsApp询价
A9F92101	1P	1 A	Z	15 kA	询价 A9F92101
A9F94101	1P	1 A	C	15 kA	询价 A9F94101
A9F93102	1P	2 A	B	15 kA	询价 A9F93102
A9F94102	1P	2 A	C	15 kA	询价 A9F94102
A9F92103	1P	3 A	Z	15 kA	询价 A9F92103
A9F94103	1P	3 A	C	15 kA	询价 A9F94103
A9F95103	1P	3 A	K	15 kA	询价 A9F95103
A9F92104	1P	4 A	Z	15 kA	询价 A9F92104
A9F94104	1P	4 A	C	15 kA	询价 A9F94104
A9F94106	1P	6 A	C	15 kA	询价 A9F94106
A9F95106	1P	6 A	K	15 kA	询价 A9F95106
A9F93110	1P	10 A	B	15 kA	询价 A9F93110
A9F94110	1P	10 A	C	15 kA	询价 A9F94110
A9F95110	1P	10 A	K	15 kA	询价 A9F95110
A9F94116	1P	16 A	C	15 kA	询价 A9F94116
A9F95116	1P	16 A	K	15 kA	询价 A9F95116
A9F93120	1P	20 A	B	15 kA	询价 A9F93120
A9F94120	1P	20 A	C	15 kA	询价 A9F94120
A9F94125	1P	25 A	C	15 kA	询价 A9F94125
A9F93132	1P	32 A	B	15 kA	询价 A9F93132
A9F94132	1P	32 A	C	15 kA	询价 A9F94132
A9F95132	1P	32 A	K	15 kA	询价 A9F95132
A9F93140	1P	40 A	B	15 kA	询价 A9F93140
A9F94140	1P	40 A	C	15 kA	询价 A9F94140
A9F93150	1P	50 A	B	70 kA	询价 A9F93150
A9F94150	1P	50 A	C	70 kA	询价 A9F94150
A9F93163	1P	63 A	B	70 kA	询价 A9F93163
A9F94163	1P	63 A	C	70 kA	询价 A9F94163
